4-in-1 Handheld Laser Welding Machine

Ray-Edge


weldingcuttingseam cleaningremote cleaning

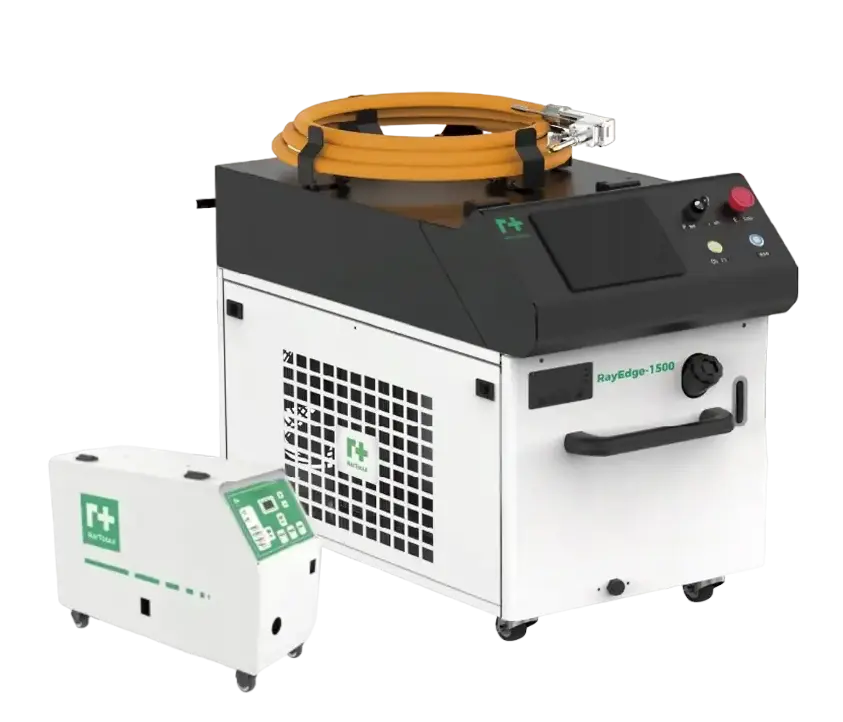

Handheld Laser Welding Machine

4 in 1 Laser Control System

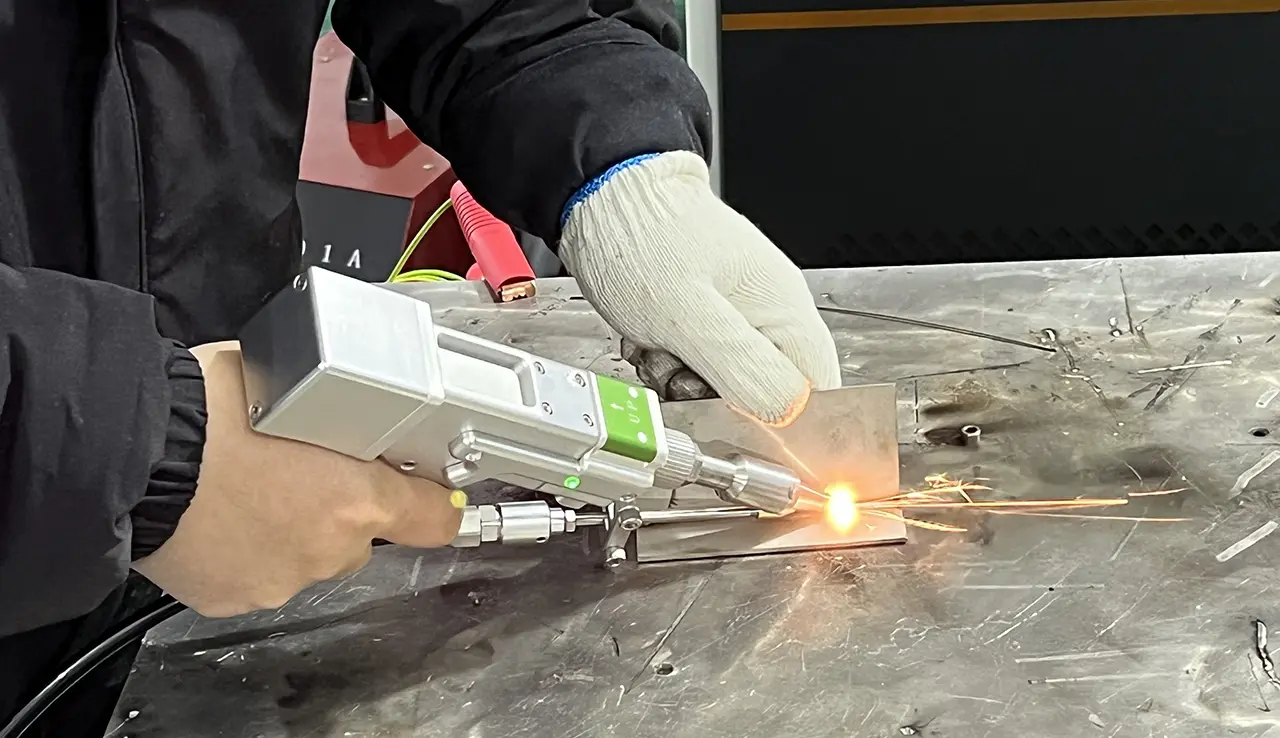

The primary function is welding. It is designed to join materials together using a high-powered laser beam, ensuring a precise and efficient welding process

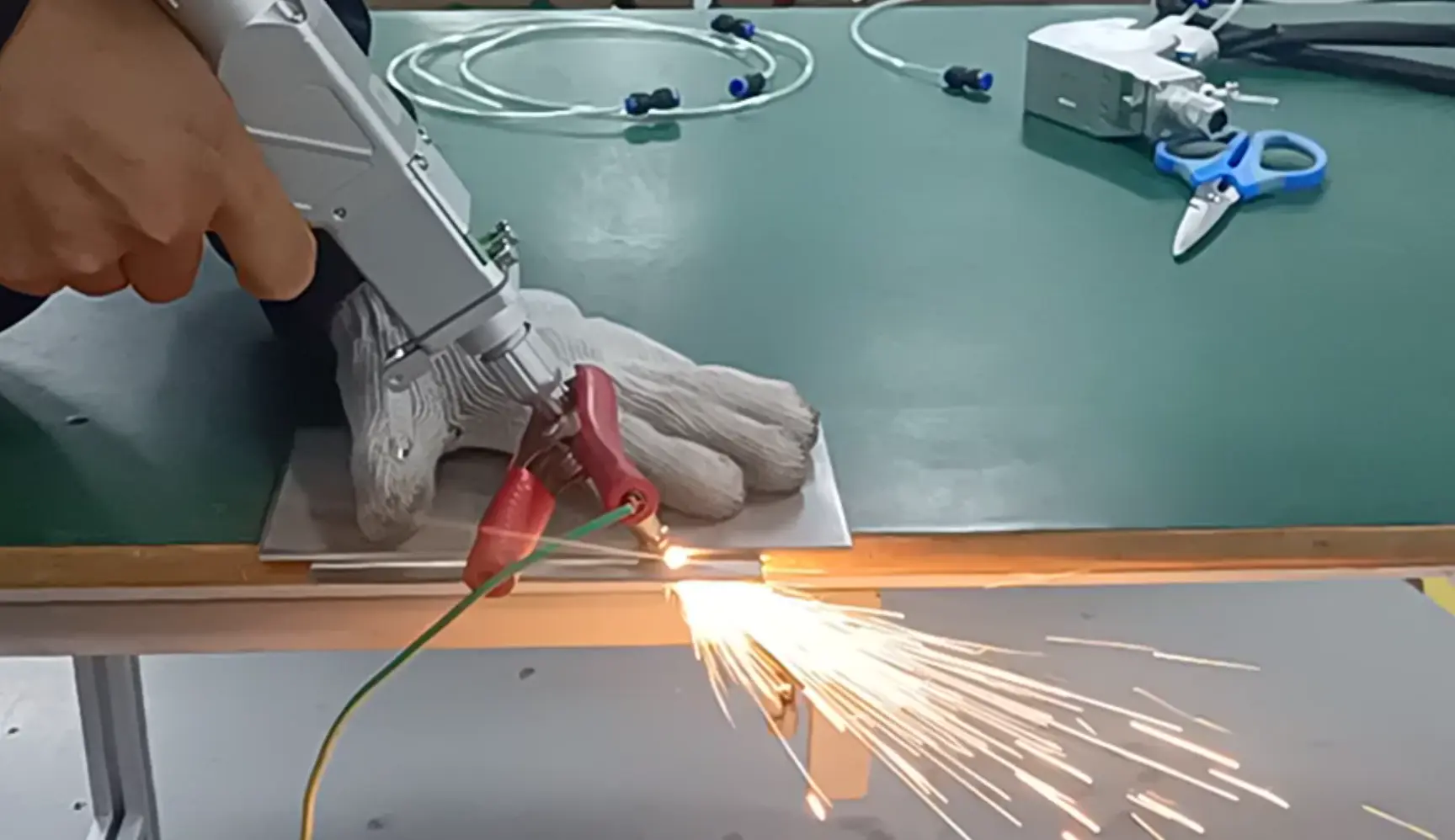

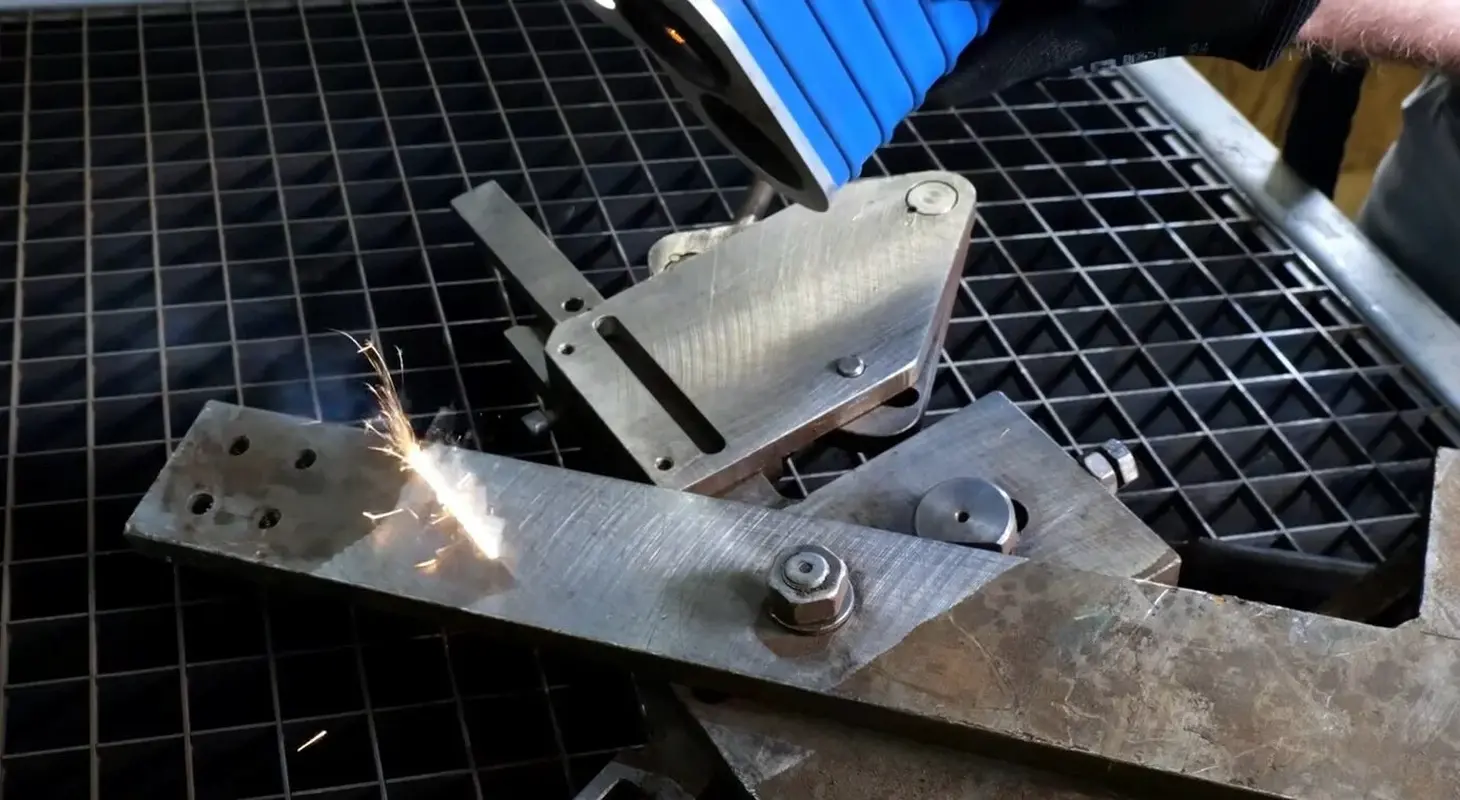

Another capability of this tool is cutting. It can be used to cut materials with high precision, making it a versatile tool for various applications that require both welding and cutting.

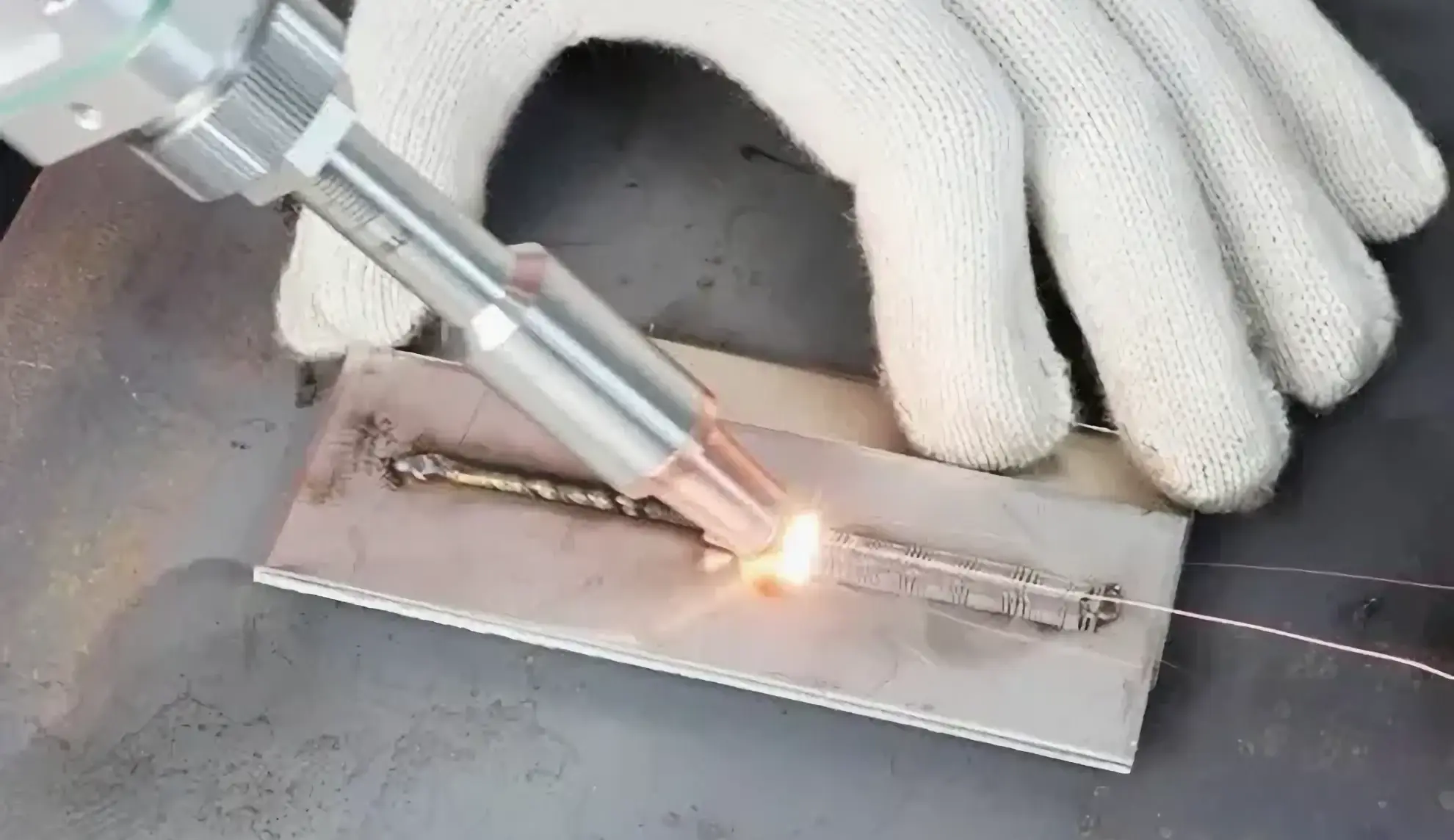

Seam cleaning is a specific function related to welding. After welding, the tool can clean the welded seam to ensure a polished and finished appearance.

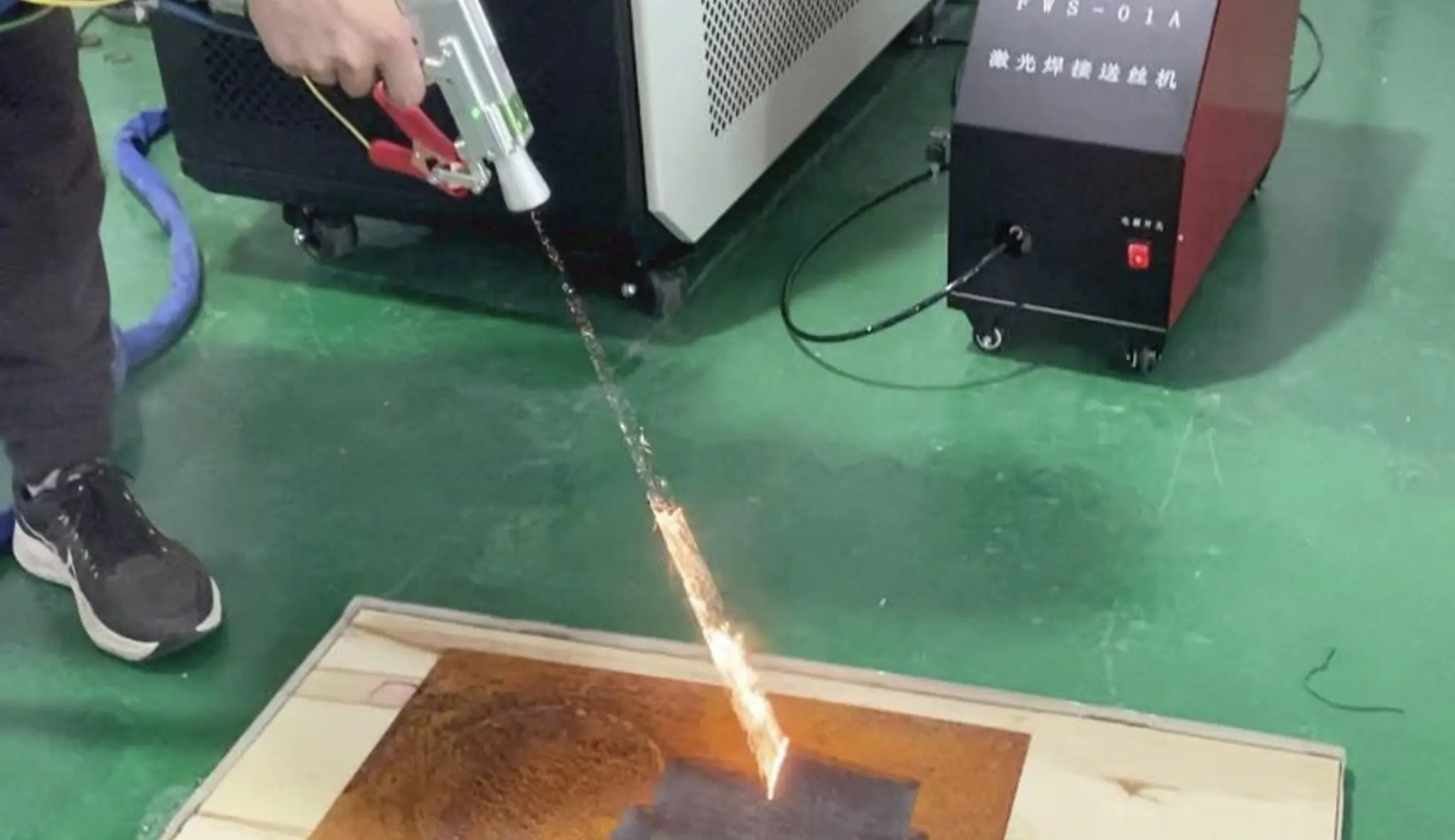

In addition to welding, this tool can also perform cleaning tasks. It can remove rust, contaminants, or unwanted material from the surface of the workpiece before or after welding, ensuring a clean and smooth welding surface.

Compact integrated design with easy operation.

Wooble weldingto improve welding capacity to seam


Wire feeder included to expand application range.

Multiple safety protection with auto beam off function once the nozzle goes away from workpiece


Technical Data

*specifications subject to change without nitice

0
Ray-Edge 1500
0
Ray-Edge 2000
0

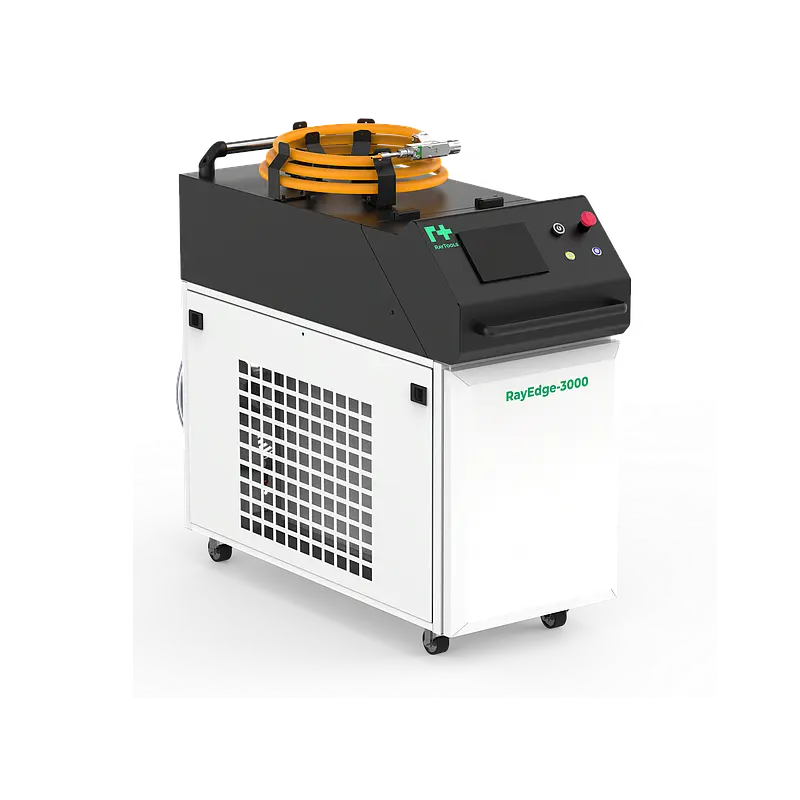

Ray-Edge 3000
Laser Power1500/2000/3000W

Laser Maxphotonics/Raycus

Laser Wavelength1080nm

Fiber Length10m

Fiber Core50um

Welding Speed0-20mm/s

Welding StyleWobble (single axis)

Welding Seam Width5mm

Wobbling Range0-5mm (Weld)/0-1 0mm (WeldSeam Clean)/0-80mm (Remote Clean)

Welding ThicknessMax 6mm (SS, MS and 5 series AL)

CoolingWater Cooling

Cover GlassΦ20mm*3mm

Collimation Length60mm

Focus Length150mm

Power Supply220V/Single Phase/50 or 60Hz

Weight215kg

Powerful Performance

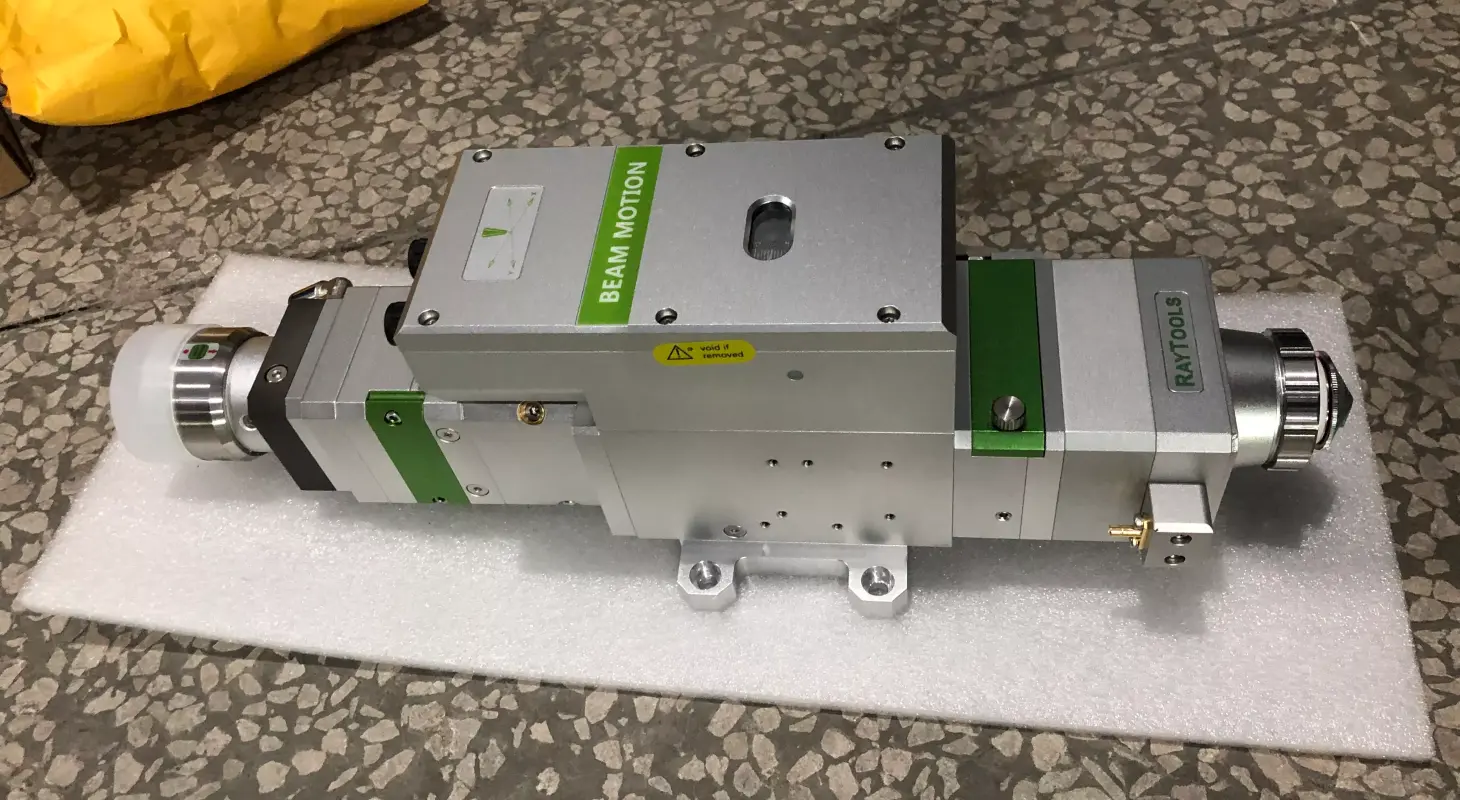

Quick Change structure of tip assembly from laser processing head
